Medium Steel Structures

Medium Steel Structures Overview

Suitable for Bay modules up to 4.5 metres. Sub frame utilises Z100 galvanized girts and purlins

Steel sheds and steel structures up to 9.0 metres wide and up to 5.4 metres high

Options shown:

Main Frame: 150 x 50 x 3 Rectangular Hollow Section (RHS)
Sub Frame:  Z100 Wall Girts and Z100 Roof Purlins
Bay Size: 4.5 metres

Medium 3D Frame image created within our advanced modelling software

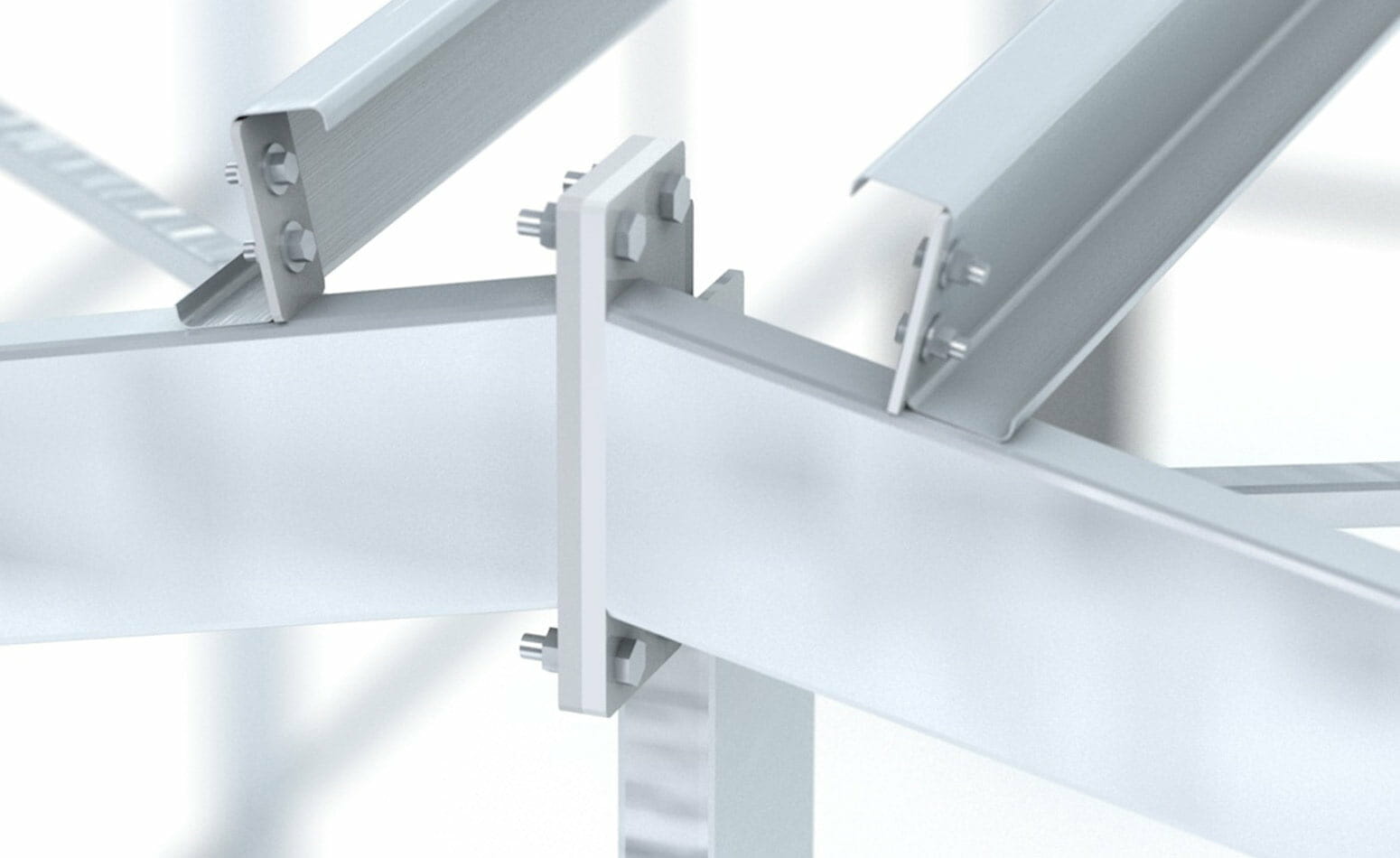

Thick Steel Plates

Thick steel connection plates with Hi-tensile bolts

Use of Hi-tensile Bolts

Frame components are securely bolted together with Hi-tensile bolts

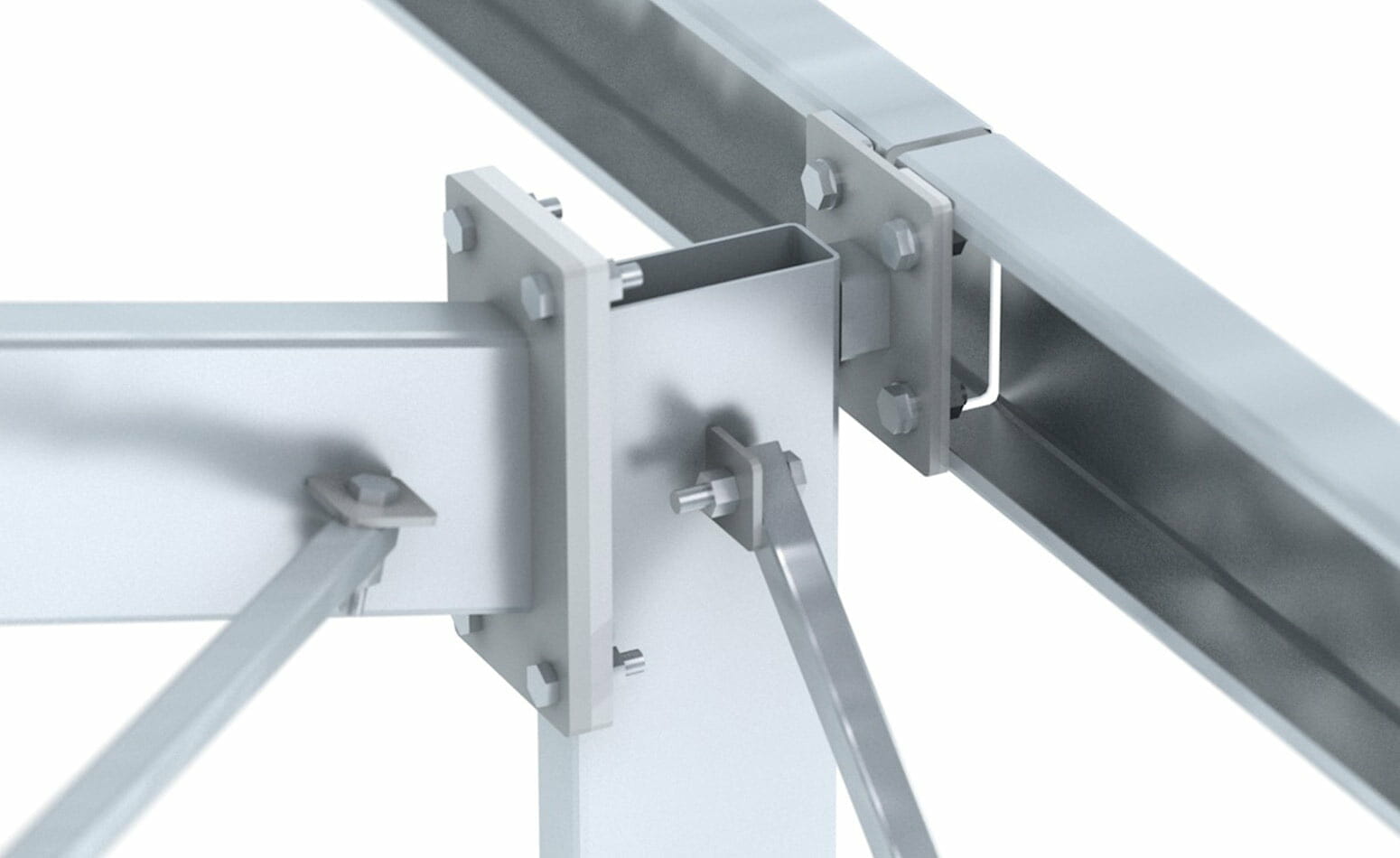

Grade 450 SupaGal® or ALLGAL®

Grade 450 SupaGal® or ALLGAL® Rectangular Hollow Section (RHS) main frame for long life

1
2
3
4
5
6
7
1

medium-top-middle-detail

2

medium-back-middle-detail

3

medium-top-corner-detail

4

medium-footing-detail

5

medium-top-front-left-detail

6

medium-top-front-middle-detail

7

medium-top-middle-middle-detail

Grade 450 SupaGal® or ALLGAL®

SupaGal® or DuraGal® mainframe for long life

Unique, adjustable footing

Unique footing design allows for location and height adjustment

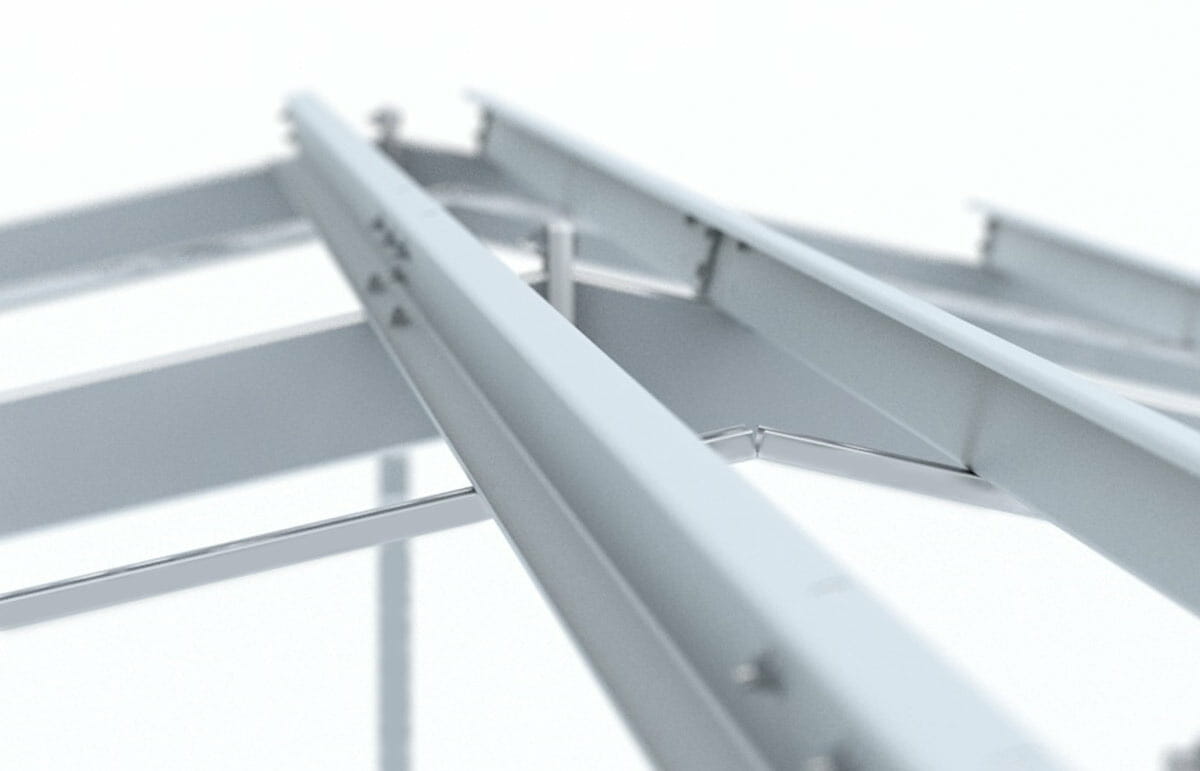

Strong galvanised steel

Strong galvanised steel purlins bolted to main frame

Key Strengths & Features

wall-and-roof-sheeting-tct

Wall and roof sheeting 0.47mm Top Coat Thickness (TCT)

category-2-region-a

Engineered to Category 2, Region A

zinc-plated-hi-tensile-frame-bolts

Zinc plated Hi-tensile frame bolts

supagal-duragal-rhs-steel

SupaGal or DuraGal RHS Steel

class-4-wall-roof-tekscrews

Class 4 wall and roof tekscrews

Typical Specifications

Steel sheds and steel structures up to 9.0 metres wide and up to 5.4 metres high

Main Frame: 150mm x 50mm x 3mm Rectangular Hollow Section (RHS) with 12mm connecting plates and 12mm Hi-tensile bolts.

Structures built using the Medium Steel Structure system:
